2" pitch 제이콥 체인 스프라켓, 160-1열   sprocket160-1.xls 다운받기

주문예: 제이콥 스프라켓 160-BTB-11H, 2517 x 60 mm 표준키홈

	열처리 타입-H
	No. Teeth Catalog Number 11 12 13 160BTB11H 160BTB12H 160BTB13H 14 15 16 17 160BTB14H 160BTB15H 160BTB16H 160BTB17H 18 19 21 26 160BTB18H 160BTB19H 160BTB21H 160BTB26H

Single-Taper Bushed

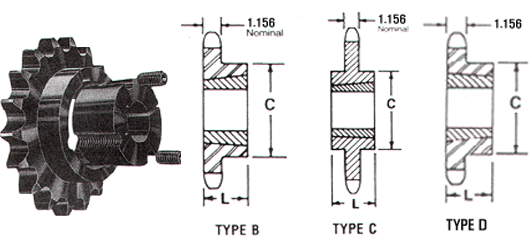

NO. Teeth	Catalog Number	Bushing	Diameter		Max. Bore	Dimensions		Type	Weight(Approx.)
			Outside Diameter	Pitch Diameter		L	C		Rim Only	Bushing Only
11 12 13 14	160BTB11 160BTB12 160BTB13 160BTB14	2517 3020 3020 3020	8.011 8.664 9.314 9.963	7.099 7.727 8.357 8.988	2 1/2 3 3 3	1 3/4 2 2 2	4 1/4 5 1/4 5 1/4 5 1/4	B,D B,D B,D B,D	9.0 11.0 13.0 16.0	3.5 6.5 6.5 6.5
15 16 17	160BTB15 160BTB16 160BTB17	3535 3535 3535	10.609 11.255 11.899	9.620 10.252 10.885	3 1/2 3 1/2 3 1/2	3 1/2 3 1/2 3 1/2	6 1/2 6 1/2 6 1/2	B,D B,D B,D	25.0 28.0 32.0	14.0 14.0 14.0
18 19 21	160BTB18 160BTB19 160BTB21	3535 3535 3535	12.543 13.185 14.470	11.518 12.151 13.419	3 1/2 3 1/2 3 1/2	3 1/2 3 1/2 3 1/2	6 1/2 6 1/2 6 1/2	B,D B,D B,D	35.0 39.0 48.0	14.0 14.0 14.0
26 35 45 60	160BTB26 160BTB35 160BTB45 160BTB60	3535 4040 4040 4545	17.671 23.422 29.802 39.362	16.593 22.312 28.671 38.215	3 1/2 4 4 4 1/2	3 1/2 4 4 4 1/2	6 1/2 7 3/4 7 3/4 8 3/4	B,D C C C	68.0 118 186 292	14.0 14.0 22.0 30.0
