1/2 " pitch 제이콥 체인 스프라켓, 40-1열   sprocket40-1.xls 다운받기

주문예 : 제이콥 스프라켓 40-BTB-14H, 1008 x 16 mm 표준키홈

	열처리 타입-H
	No. Teeth Catalog Number 14 15 16 40BTB14H 40BTB15H 40BTB16H 17 18 19 40BTB17H 40BTB18H 40BTB19H 20 21 22 40BTB20H 40BTB21H 40BTB22H 23 24 25 40BTB23H 40BTB24H 40BTB25H 26 28 30 40BTB26H 40BTB28H 40BTB30H

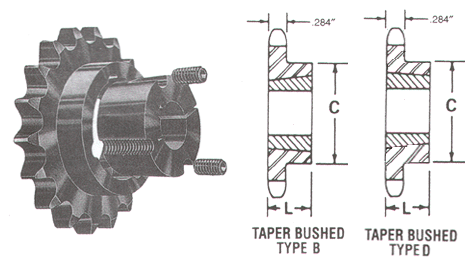

Single-Taper Bushed

No. Teeth	Catalog Number	Bushing	Diameters		Max. Bore	Type
			Outside Diameter	Pitch Diameter
14 15 16 17	40BTB14 40BTB15 40BTB16 40BTB17	1008 1008 1008 1210	2.491 2.652 2.814 2.975	2.247 2.405 2.563 2.721	1 1 1 1 1/4	B,D B,D B,D B,D
18 19 20 21	40BTB18 40BTB19 40BTB20 40BTB21	1210 1210 1610 1610	3.135 3.296 3.457 3.617	2.879 3.038 3.196 3.355	1 1/4 1 1/4 1 5/8 1 5/8	B,D B,D B,D B,D
22 23 24 25	40BTB22 40BTB23 40BTB24 40BTB25	1610 1610 1610 1610	3.778 3.938 3.457 3.617	3.513 3.672 3.831 3.989	1 5/8 1 5/8 1 5/8 1 5/8	B,D B,D B,D B,D
26 28 30 32	40BTB26 40BTB28 40BTB30 40BTB32	1610 1610 1610 1610	4.418 4.738 5.057 5.377	4.148 4.466 4.783 5.101	1 5/8 1 5/8 1 5/8 1 5/8	B,D B,D B,D B,D
35 36 40 42	40BTB35 40BTB36 40BTB40 40BTB42	1610 1610 1610 1610	5.855 6.015 6.653 6.972	5.578 5.737 6.373 6.691	1 5/8 1 5/8 1 5/8 1 5/8	B,D B,D B,D B,D
45 48 54 60	40BTB45 40BTB48 40BTB54 40BTB60	1610 1610 1610 1610	7.451 7.928 8.885 9.841	7.168 7.645 8.599 9.554	1 5/8 1 5/8 1 5/8 1 5/8	B,D B,D B,D B,D
70 72 80	40BTB70 40BTB72 40BTB80	2012 2012 2012	11.434 11.752 13.026	11.145 11.463 12.736	2 2 2	B,D B,D B,D
84 96 112	40BTB84 40BTB96 40BTB112	2012 2012 2017	13.663 15.573 18.122	13.372 15.282 17.828	2 2 2 1/2	B,D B,D B,D
