1/2 " pitch 제이콥 체인 스프라켓, 40-2열   sprocket40-2.xls 다운받기

주문예 : 제이콥 2열 스프라켓 D40-ATB-15HT, 1008 x 19 mm 표준키홈

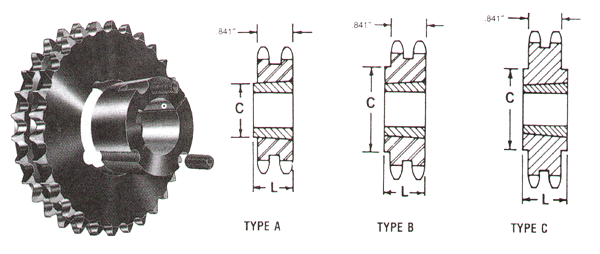

Double-Taper Bushed

No.
Teeth		 Catalog
Number		 Bushing Diameters Max.
Bore		 Dimensions Type Weigth(Approx.)
Outside
Diameter		 Pitch
Diameter		 L C Rim
Only		 Bushing
Only
15
16
17
18		 D40ATB15H
D40ATB16H
D40ATB17H
D40ATB18H		 1008
1008
1008
1210		 2.652
2.814
2.975
3.135		 2.405
2.563
2.721
2.879		 1
1
1
1 1/4		 7/8
7/8
7/8
1		 1 17/64
1 17/64
1 17/64
2  5/16		 A
A
A
B		 .5
.6
.7
.7		 .3
.3
.3
.6
19
20
21
23		 D40ATB19H
D40ATB20H
D40ATB21H
D40ATB23H		 1210
1610
1610
1610		 3.296
3.457
3.617
3.938		 3.038
3.196
3.355
3.672		 1 1/4
1 5/8
1 5/8
1 5/8		 1
1
1
1		 2 1/2
2 5/8
2 3/4
3		 B
B
B
B		 .9
.9
1.0
1.3		 .6
.9
.9
.9
25
30
36
42		 D40ATB25H
D40ATB30H
D40ATB36H
D40ATB42H		 2012
2012
2012
2517		 4.258
5.057
6.015
6.972		 3.989
4.783
5.737
6.691		 2
2
2
2 1/2		 1 1/4
1 1/4
1 1/4
1 3/4		 3 13/32
4 15/64
5  5/32
4   1/4		 B
B
B
C		 1.6
3.4
5.9
7.0		 1.7
1.7
1.7
3.5
48
52
60
68		 D40ATB48H
D40ATB52H
D40ATB60H
D40ATB68H		 2517
2517
2517
2517		 7.928
8.566
9.841
11.115		 7.645
8.281
9.554
10.826		 2 1/2
2 1/2
2 1/2
2 1/2		 1 3/4
1 3/4
1 3/4
1 3/4		 4 1/4
4 1/4
4 1/4
4 1/4		 C
C
C
C		 9.6
11.4
15.4
20.5		 3.5
3.5
3.5
3.5
76
84
95
102		 D40ATB76H
D40ATB84H
D40ATB95H
D40ATB102H		 2517
2517
2517
2517		 12.389
13.663
15.414
16.529		 12.099
13.372
15.122
16.236		 2 1/2
2 1/2
2 1/2
2 1/2		 1 3/4
1 3/4
1 3/4
1 3/4		 4 1/4
4 1/4
4 1/4
4 1/4		 C
C
C
C		 25.7
31.6
34.1
36.8		 3.5
3.5
3.5
3.5
