5/8 " pitch 제이콥 체인 스프라켓, 50-2열   sprocket50-2.xls 다운받기

주문예 : 제이콥 2열 스프라켓 D50-ATB-14HT, 1008 x 19 mm 표준키홈

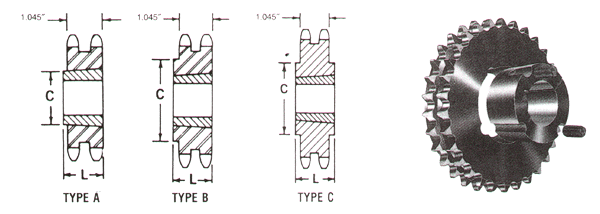

Double-Taper Bushed

NO.
Teeth		 Catalog
Number		 Bushing Diameter Max.
Bore		 Dimensions Type Weight(Approx.)
Outside
Diameter		 Pitch
Diameter		 L C Rim
Only		 Bushing
Only
14
15
16
17		 D50ATB14H
D50ATB15H
D50ATB16H
D50ATB17H		 1008
1210
1210
1610		 3.113
3.315
3.517
3.719		 2.809
3.006
3.204
3.410		 1
1 1/4
1 1/4
1 5/8		 7/8
1
1
1


 		 A
A
A
A		 .8
.9
1.1
1.1		 .3
.6
.6
.6
18
19
20
21		 D50ATB18H
D50ATB19H
D50ATB20H
D50ATB21H		 1610
1610
2012
2012		 3.920
4.120
4.321
4.522		 3.599
3.797
3.995
4.193		 1 5/8
1 5/8
2
2		 1
1
1 1/4
1 1/4

3 1/4
3 1/2		 A
A
B
B		 1.3
1.6
1.5
1.9		 .9
.9
1.7
1.7
25
30
36
42		 D50ATB25H
D50ATB30H
D50ATB36H
D50ATB42H		 2012
2517
2517
2517		 5.322
6.321
7.519
8.715		 4.987
5.979
7.171
8.363		 2
2 1/2
2 1/2
2 1/2		 1 1/4
1 3/4
1 3/4
1 3/4		 4 9/32
5 9/32
4 1/4
4 1/4		 B
B
C
C		 3.8
7.5
9.4
13.4		 1.7
3.5
3.5
3.5
48
52
60
68		 D50ATB48H
D50ATB52H
D50ATB60H
D50ATB68H		 2517
2517
2517
2517		 9.911
10.707
12.301
13.893		 9.556
10.351
11.942
13.533		 2 1/2
2 1/2
2 1/2
2 1/2		 1 3/4
1 3/4
1 3/4
1 3/4		 4 1/4
4 3/8
4 3/8
4 3/8		 C
C
C
C		 18.6
22.2
30.3
39.4		 3.5
3.5
3.5
3.5
76
84
95
102		 D50ATB76H
D50ATB84H
D50ATB95H
D50ATB102H		 2517
2517
2517
2517		 15.486
17.079
19.267
20.661		 15.124
16.715
18.903
20.295		 2 1/2
2 1/2
2 1/2
2 1/2		 1 3/4
1 3/4
1 3/4
1 3/4		 4 3/8
4 3/8
4 3/8
4 3/8		 C
C
C
C		 41.2
45.3
58.8
67.1		 3.5
3.5
3.5
3.5
NOTE: Double 50 stock sprockets teeth or have Hardened Teeth.
