1 " pitch 제이콥 체인 스프라켓, 80-1열   sprocket80-1.xls 다운받기

주문예 : 제이콥 스프라켓 80-BTB-10H, 1215 x 25 mm 표준키홈




열처리 타입-H
No.
Teeth		 Catalog
Number
10
11
12		 80BTB10H
80BTB11H
80BTB12H
13
14
15		 80BTB13H
80BTB14H
80BTB15H
16
17
18		 80BTB16H
80BTB17H
80BTB18H
19
20
21		 80BTB19H
80BTB20H
80BTB21H
22
23
24		 80BTB22H
80BTB23H
80BTB24H
25
26
27		 80BTB25H
80BTB26H
80BTB27H
28
30		 80BTB28H
80BTB30H

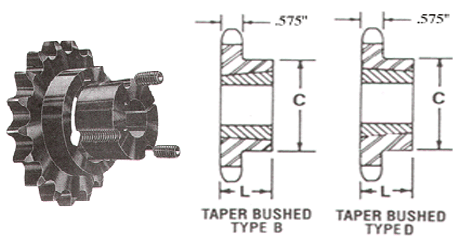

Single-Taper Bushed

NO.
Teeth		 Catalog
Number		 Bushing Diameter Max.
Bore		 Dimensions Type Weight(Approx.)
Outside
Diameter		 Pitch
Diameter		 L C Rim
Only		 Bushing
Only
10
11
12
13
14
15		 80BTB10
80BTB11
80BTB12
80BTB13
80BTB14
80BTB15		 1215
1215
1615
1615
1615
1615		 3.678
4.006
4.332
4.657
4.982
5.305		 3.236
3.549
3.864
4.179
4.494
4.810		 1 1/4
1 1/4
1 5/8
1 5/8
1 5/8
1 5/8		 1 1/2
1 1/2
1 1/2
1 1/2
1 1/2
1 1/2		 2 3/8
2 15/32
3
3
3 1/4
3 1/4		 B,D
B,D
B,D
B,D
B,D
B,D		 1.1
1.5
1.8
2.3
2.5
2.7		 .8
.8
1.2
1.2
1.2
1.2
16
17
18
19
20		 80BTB16
80BTB17
80BTB18
80BTB19
80BTB20		 2012
2012
2012
2012
2517		 5.627
5.950
6.271
6.593
6.914		 5.126
5.442
5.759
6.076
6.392		 2
2
2
2
2 1/2		 1 1/4
1 1/4
1 1/4
1 1/4
1 3/4		 3 9/16
3 9/16
3 9/16
3 9/16
4 1/4		 B,D
B,D
B,D
B,D
B,D		 2.8
3.1
2.6
4.1
5.5		 1.7
1.7
1.7
1.7
1.7
21
22
23
24
25		 80BTB21
80BTB22
80BTB23
80BTB24
80BTB25		 2517
2517
2517
2517
2517		 7.235
7.555
7.875
8.196
8.516		 6.710
7.027
7.344
7.661
7.979		 2 1/2
2 1/2
2 1/2
2 1/2
2 1/2		 1 3/4
1 3/4
1 3/4
1 3/4
1 3/4		 4 1/4
4 1/4
4 1/4
4 1/4
4 1/4		 B,D
B,D
B,D
B,D
B,D		 6.0
6.5
7.0
7.5
8.1		 3.5
3.5
3.5
3.5
3.5
26
27
28
30
32		 80BTB26
80BTB27
80BTB28
80BTB30
80BTB32		 2517
2517
2517
2517
2517		 8.836
9.156
9.475
10.114
10.753		 8.296
8.614
8.931
9.567
10.202		 2 1/2
2 1/2
2 1/2
2 1/2
2 1/2		 1 3/4
1 3/4
1 3/4
1 3/4
1 3/4		 4 1/4
4 1/4
4 1/4
4 1/4
4 1/4		 B,D
B,D
B,D
B,D
B,D		 8.8
9.0
9.5
11.5
12.0		 3.5
3.5
3.5
3.5
3.5
35
36
40
45
48
54		 80BTB35
80BTB36
80BTB40
80BTB45
80BTB48
80BTB54		 2517
2517
2517
2517
2517
2517		 11.711
12.030
13.306
14.901
15.857
17.769		 11.156
11.474
12.746
14.336
15.290
17.198		 2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2		 1 3/4
1 3/4
1 3/4
1 3/4
1 3/4
1 3/4		 4 1/4
4 1/4
4 1/4
4 1/4
4 1/4
4 1/4		 B,D
B,D
B,D
B,D
B,D
B,D		 15.2
17.0
21.0
26.5
29.5
38.5		 3.5
3.5
3.5
3.5
3.5
3.5
60
70
80		 80BTB60
80BTB70
80BTB80		 2517
3020
3020		 19.681
22.867
26.052		 19.107
22.289
25.471		 2 1/2
3
3		 1 3/4
2
2		 4 1/4
5 1/4
5 1/4		 B,D
B,D
B,D		 45.0
52.3
69.2		 3.5
6.5
6.5
＊HAS RECESSED GROOVE IN HUB FOR CHAIN CLEARANCE.
