1 " pitch 제이콥 체인 스프라켓, 80-2열   sprocket80-2.xls 다운받기

주문예 : 제이콥 2열 스프라켓 D80-ATB-13H, 1615 x 32 mm 표준키홈


Double-Taper Bushed

NO.
Teeth		 Catalog
Number		 Bushing Diameter Max.
Bore		 Dimensions Type Weight(Approx.)
Outside
Diameter		 Pitch
Diameter		 L C Rim
Only		 Bushing
Only
13
14
15		 D80ATB13H
D80ATB14H
D80ATB15H		 1615
2012
2012		 4.657
4.982
5.305		 4.179
4.494
4.810		 1 5/8
2
2		 1 1/2
1 1/4
1 1/4

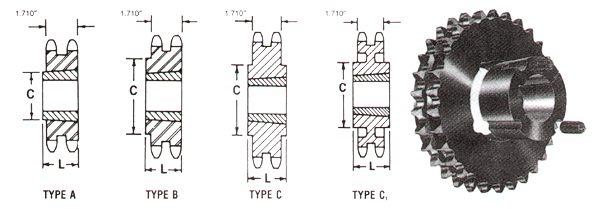

 		 A
A
A		 3.4
3.5
4.3		 1.2
1.7
1.7
16
17
18		 D80ATB16H
D80ATB17H
D80ATB18H		 2517
2517
2517		 5.627
5.950
6.271		 5.126
5.442
5.759		 2 1/2
2 1/2
2 1/2		 1 3/4
1 3/4
1 3/4		 3 1/8
3 1/8
3 1/8		 A
A
A		 3.8
5.1
6.4		 3.5
3.5
3.5
19
20
21
25		 D80ATB19H
D80ATB20H
D80ATB21H
D80ATB25H		 3020
3020
3020
3020		 6.593
6.914
7.235
8.516		 6.076
6.392
6.710
7.979		 3
3
3
3		 2
2
2
2		 5
5 1/4
5 9/16
6 7/8		 B
B
B
B		 5.6
7.1
8.9
16.5		 6.5
6.5
6.5
6.5
30
36
42
45		 D80ATB30H
D80ATB36H
D80ATB42H
D80ATB45H		 3020
3020
3020
3020		 10.114
12.030
13.944
14.901		 9.567
11.474
13.392
14.336		 3
3
3
3		 2
2
2
2		 5 1/4
5 1/4
5 1/4
5 1/4		 C
C
C
C1		 25.1
39.4
36.4
41.4		 6.5
6.5
6.5
6.5
52
60
68
76
95		 D80ATB52H
D80ATB60H
D80ATB68H
Dc80ATB76H
D80ATB95H		 3020
3020
3020
3020
3020		 17.132
19.681
22.230
24.778
30.828		 16.562
19.107
21.653
24.198
30.245		 3
3
3
3
3		 2
2
2
2
2		 5 1/4
5 1/4
5 1/4
5 1/4
5 1/4		 C1
C1
C1
C1
C1		 56.2
66.3
72.0
89.1
112		 6.5
6.5
6.5
6.5
6.5
NOTE: Double 80 stock sprockets with 25 teeth or less have Hardened Teeth.
