1 1/4" pitch 제이콥 체인 스프라켓, 100-1열   sprocket100-1.xls 다운받기

주문예 : 제이콥 스프라켓 100-BTB-11H, 1615 x 32 mm 표준키홈



열처리 타입-H
No.
Teeth		 Catalog
Number
11
12
13		 100BTB11H
100BTB12H
100BTB13H
14
15
16		 100BTB14H
100BTB15H
100BTB16H
17
18
19		 100BTB17H
100BTB18H
100BTB19H
20
21
22		 100BTB20H
100BTB21H
100BTB22H
24
26
28
30		 100BTB24H
100BTB26H
100BTB28H
100BTB30H

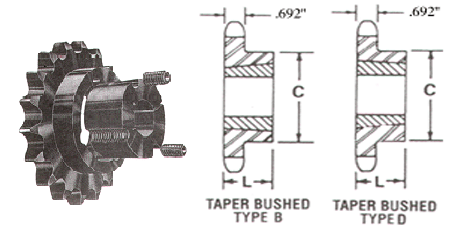

Single-Taper Bushed
NO.
Teeth		 Catalog
Number		 Bushing Diameter Max.
Bore		 Dimensions Type Weight(Approx.)
Outside
Diameter		 Pitch
Diameter		 L C Rim
Only		 Bushing
Only
11
12
13
14
15		 100BTB11
100BTB12
100BTB13
100BTB14
100BTB15		 1615
1615
2012
2012
2517		 5.007
5.415
5.821
6.227
6.631		 4.437
4.830
5.223
5.617
6.012		 1 5/8
1 5/8
2
2
2 1/2		 1 1/2
1 1/2
1 1/4
1 1/4
1 3/4		 3
3 1/4
3 9/16
3 9/16
4 1/4		 B,D
B,D
B,D
B,D
B,D		 2.7
3.5
3.6
3.9
5.0		 1.2
1.2
1.7
1.7
3.5
16
17
18
19
20		 100BTB16
100BTB17
100BTB18
100BTB19
100BTB20		 2517
2517
2517
2517
2517		 7.043
7.437
7.839
8.241
8.642		 6.407
6.803
7.198
7.594
7.991		 2 1/2
2 1/2
2 1/2
2 1/2
2 1/2		 1 3/4
1 3/4
1 3/4
1 3/4
1 3/4		 4 1/2
4 1/2
4 1/2
4 1/2
4 1/2		 B,D
B,D
B,D
B,D
B,D		 6.4
7.1
7.8
8.7
9.6		 3.5
3.5
3.5
3.5
3.5
21
22
24
26
28		 100BTB21
100BTB22
100BTB24
100BTB26
100BTB28		 2517
2517
2517
2517
3020		 9.043
9.444
10.245
11.045
11.844		 8.387
8.783
9.577
10.370
11.164		 2 1/2
2 1/2
2 1/2
2 1/2
3		 1 3/4
1 3/4
1 3/4
1 3/4
2		 4 1/2
4 1/2
4 1/2
4 1/2
5 1/4		 B,D
B,D
B,D
B,D
B,D		 10.6
11.0
13.0
15.0
16.5		 3.5
3.5
3.5
3.5
6.5
30
32
35
36
40		 100BTB30
100BTB32
100BTB35
100BTB36
100BTB40		 3020
3020
3020
3020
3020		 12.643
13.442
14.639
15.038
16.633		 11.958
12.753
13.945
14.342
15.932		 3
3
3
3
3		 2
2
2
2
2		 5 1/4
5 1/4
5 1/4
5 1/4
5 1/4		 B,D
B,D
B,D
B,D
B,D		 22.0
23.0
28.0
31.0
37.0		 6.5
6.5
6.5
6.5
6.5
45
48
54
60		 100BTB45
100BTB48
100BTB54
100BTB60		 3020
3020
3020
3020		 18.626
19.821
22.212
24.601		 17.919
19.112
21.498
23.884		 3
3
3
3		 2
2
2
2		 5 1/4
5 1/4
5 1/4
5 1/4		 B,D
B,D
B,D
B,D		 46.0
53.0
62.0
72.0		 6.5
6.5
6.5
6.5
