SC스페이서 제원

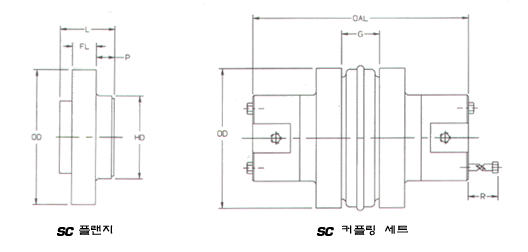

SC시리즈 스페이서 커플링 제원

사이즈 샤프트간 거리 플랜지
번호		 허브
번호		 제원 (mm)
mm inch OD OAL G R P HD L FL

5SC 35

 89 3.50 5SC35 5SCH 82.6 143 19.1 14.2 203.2 50.8 42.9 14.9

6SC 35

 89 3.50 6SC35 6SCH 101.6 149.4 22.4 19.1 14.9 63.5 41.4 18.3

       44

 111 4.38 6SC44 6SCH 101.6 171.5 22.4 19.1 26.2 63.5 52.3 18.3

       50

 127 5.00 6SC50 6SCH 101.6 187.5 22.4 19.1 34.0 63.5 60.5 18.3

7SC 35

 89 3.50 7SC35 7SCH 117.5 162.1 25.4 16 11.9 71.4 41.4 19.8

       44

 111 4.38 7SC44 7SCH 117.5 184.2 25.4 16 23.1 71.4 52.3 19.8

       50

 127 5.00 7SC50 7SCH 117.5 200.2 25.4 16 30.9 71.4 60.5 19.8

8SC 35

 89 3.50 8SC35 8SCH 138.4 174.8 28.7 20.6 7.1 82.6 41.4 23.1

       35-10

 89 3.50 8SC35-10 10SCH* 138.4 206.5 28.7 20.6 7.1 111.3 41.4 23.1

       44

 111 4.38 8SC44 8SCH 138.4 196.9 28.7 20.6 18.2 82.6 52.3 23.1

       50

 127 5.00 8SC50 8SCH 138.4 212.9 28.7 20.6 26.2 82.6 60.5 23.1

       50-10

 127 5.00 8SC50-10 10SCH* 138.4 244.6 28.7 30.2 26.2 111.3 60.5 23.1

9SC 35

 89 3.50 9SC35 9SCH* 161.3 190.5 36.6 26.9 1.5 92.2 42.9 26.2

       44

 111 4.38 9SC44 9SCH* 161.3 209.6 36.6 26.9 11.2 92.2 52.3 26.2

       50

 127 5.00 9SC50 9SCH* 161.3 225.6 36.6 26.9 19.1 92.2 60.5 26.2

       50-11

 127 5.00 9SC50-11 11SCH* 161.3 263.7 36.6 30.2 19.1 133.4 60.5 26.2

       70-11

 178 7.00 9SC70-11 11SCH* 161.3 314.5 36.6 30.2 44.5 133.4 85.9 26.2

       78-11

 197 7.75 9SC78-11 11SCH* 161.3 333.5 36.6 30.2 54.1 133.4 95.3 26.2

10SC 48

 121 4.75 10SC48 10SCH* 190.5 238.3 41.4 30.2 8.6 111.3 57.2 30.9

         50

 127 5.00 10SC50 10SCH* 190.5 244.6 41.4 30.2 11.9 111.3 60.5 30.9

         70-13

 178 7.00 10SC70-13 13SCH* 190.5 346.2 41.4 47.7 37.3 155.7 85.9 30.9

         78-13

 197 7.75 10SC78-13 13SCH* 190.5 365.3 41.4 47.7 46.7 155.7 95.3 30.9

         100-13

 254 10.00 10SC100-13 13SCH* 190.5 422.4 41.4 47.7 75.4 155.7 123.9 30.9

11SC 48

 121 4.75 11SC48 11SCH* 219.1 261.9 47.8 30.2 0.8 133.4 38.1 38.1

         50

 127 5.00 11SC50 11SCH* 219.1 263.7 47.8 30.2 1.5 133.4 39.6 38.1

         70-14

 178 7.00 11SC70-14 14SCH 219.1 371.6 47.8 50.8 26.9 165.1 65.0 38.1

         78-14

 197 7.75 11SC78-14 14SCH 219.1 390.7 47.8 50.8 36.6 165.1 74.7 38.1

         100-14

 254 10.00 11SC100-14 14SCH 219.1 447.8 47.8 50.8 65.0 165.1 103.1 38.1

12SC 70

 178 7.00 13SC70 12SCH* 254 327.2 58.7 38.1 16.8 146.1 62.7 42.9

         70-14

 178 7.00 12SC70-14 14SCH 254 371.6 58.7 50.8 16.8 165.1 62.7 42.9

         78-14

 197 7.75 12SC78 12SCH* 254 346.2 58.7 38.1 26.2 146.1 72.1 42.9

         78-14

 197 7.75 12SC78-14 14SCH 254 390.7 58.7 50.8 26.2 165.1 72.1 42.9

13SC 78

 197 7.75 13SC78 13SCH* 298.5 365.3 68.3 47.8 14.2 155.7 82.6 50.0

14SC 78

 197 7.75 14SC78 14SCH 352.4 390.7 82.6 50.8 0.8 165.1 69.1 57.2
